Here end the fabrication formulas for sheet metal up next we ll be seeing some of the terminologies in sheet metal that you ll need.
Oml sheet metal.
At oml metals ltd we specialise in sheet metal ductwork and steel fabrications.

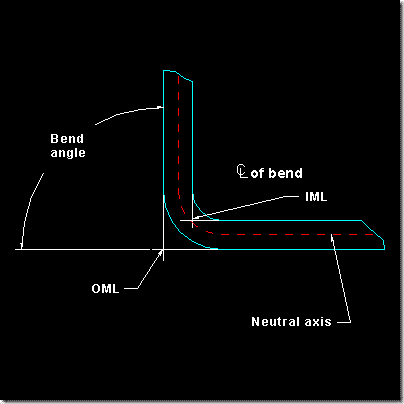

Outside mold line or oml the intersection of two outside surfaces of a part extended past the bend radius.
Bend line shift bls the distance from the outside mold line to the original bend line on the flat pattern this is used to calculate the backstop location when working off of a flat pattern.
You only have to insert interior angle flange lengths k factor inside radius and material thickness.
When calculating the outside offset use the included bend angle.
Outside mold line oml a line that runs parallel to the outside of the workpiece.
Most sheet metal materials will conform to the calculations.
Most drawing dimensions for formed sheet parts are to the outside mold line.
This page also includes a link to a on line calculator.
Get to know them better to learn advance concept easily.
Cells on the right will output the desired values.
Request a quote for your metal today from our los angeles location below.
Inside mold line iml a line that runs parallel to the inside of the workpiece.
First the casting alloys those suitable for casting in sand permanent.
Outside offset osos the measurement from the surface of the outside radius to the apex of the outside mold lines.
Most aluminum alloy sheet stock used in aircraft construction range from 016 to 096 inches in thickness.
However some of the larger aircraft use sheet stock which may be as thick as 356 inches.
With our top of the range machinery we can cater for many diverse industries and make bespoke items which are hard to find we also make custom steel stainless and aluminum fabrications to our clients requirements.
Inner and outer mold line definition in sheet metal operation 10 05 2012 5 50 am i am agree with lyn iml the inside dimensions of sheet metal part and oml is the outer like a square or u shape to be inserted in a given dimension.
This intersection is not actually something that can be measured on a part directly unless the bend angle is 90 degrees.
Bigger volume of metal removed less time to machine the workpiece the market requires safe clamping which could at the same time possibly avoid the deformations of the piece itself.
The following illustration shows the equation calculation for determining the bend line to mold allowance when forming sheet metal.
